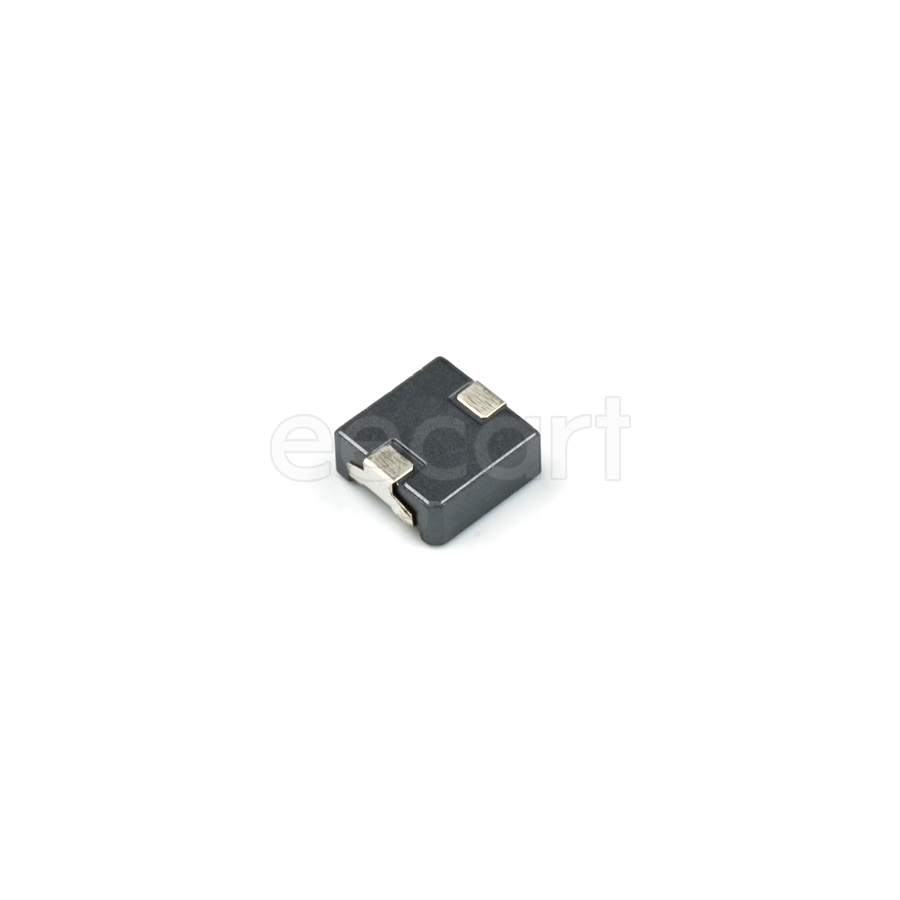

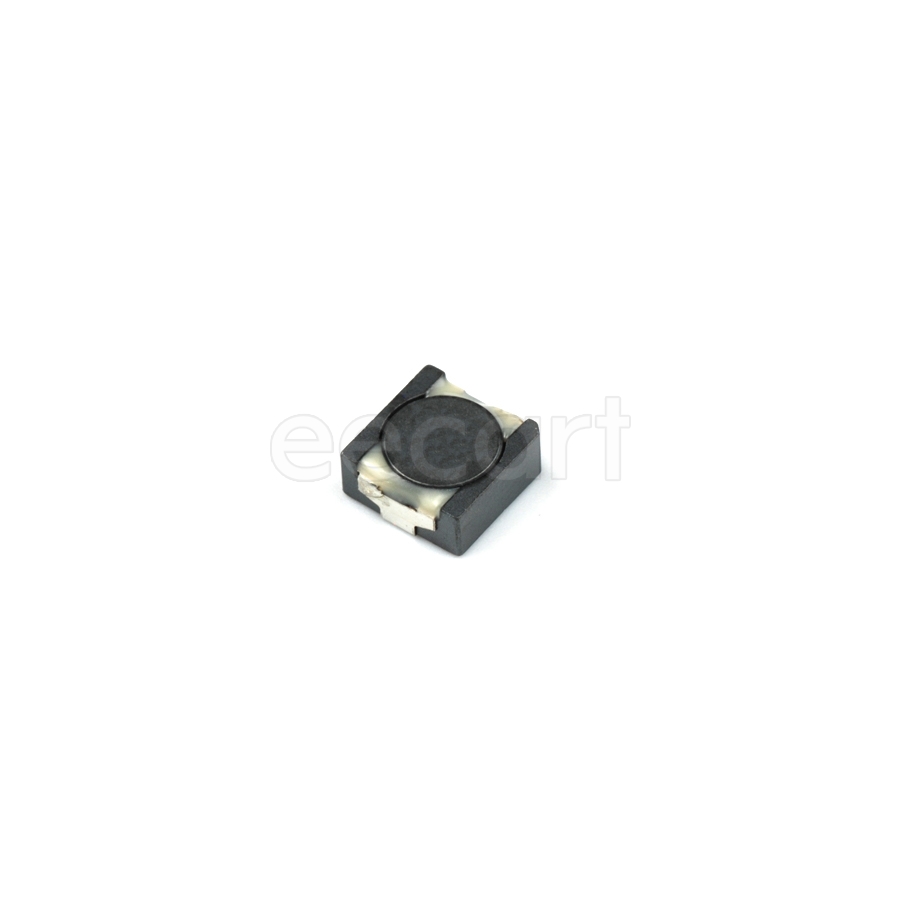

RLF12545T-100M5R1-PF
Manufacturer:
TDK Corporation
Mfr.Part #:
RLF12545T-100M5R1-PF
Datasheet:
Description:
Fixed Inductors SMD,12.50mm×12.80mm×4.70mm SMD/SMT 10 µH 20 % 5.1 A 12.4 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 4.7 mm |
| Length | 12.5 mm |
| Width | 12.8 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -20 °C |
| Number of Pins | 2 |
| Resistance | 12.4 mΩ |
| Composition(Kit Type) | Wirewound |
| Height | 4.5 mm |
| Packaging | Reel |
| Depth | 13 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Current Rating | 5.1 A |
| DC Resistance (DCR) | 12.4 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Shielding | Shielded |
| Inductance | 10 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 5.1 A |
| inductance tolerance | 20 % |
| Max DC Current | 5.1 A |
| DC Current | 5.1 A |
| Saturation Current | 6 A |
| Schedule B | 8504500000 |
| Type | Wirewound |
